Corrosion on an installed steel roof needs a location-based investigation before cleaning, painting or replacing sheets. Record what is affected, identify how that area becomes wet, and check the sheet and its connected components. A brown mark can come from loose steel debris; damage extending into a sheet or fixing demands a different response.
For coated-steel roofs already in service, use the investigation below. New coastal roof purchases are covered by the coastal roofing selection guide .
Start with safe access and a defect record
Keep people off a suspect roof until competent personnel have assessed access and fragility. HSE identifies corroded metal sheets among potentially fragile surfaces. Arrange inspection from a safe position and use a qualified roofing team for close examination or opening concealed joints. Follow the local work-at-height requirements.
Before disturbing a defect, photograph the whole roof zone and a close view with a location reference. Note when the mark appeared, recent equipment installation or cleaning, leaks and previous repairs. Recover sheet labels, coating identity, fastener details and warranty documents where available. Separate observations from suspected causes in the record: “brown streak below pipe” is an observation; “copper runoff” needs confirmation of the pipe and water route.

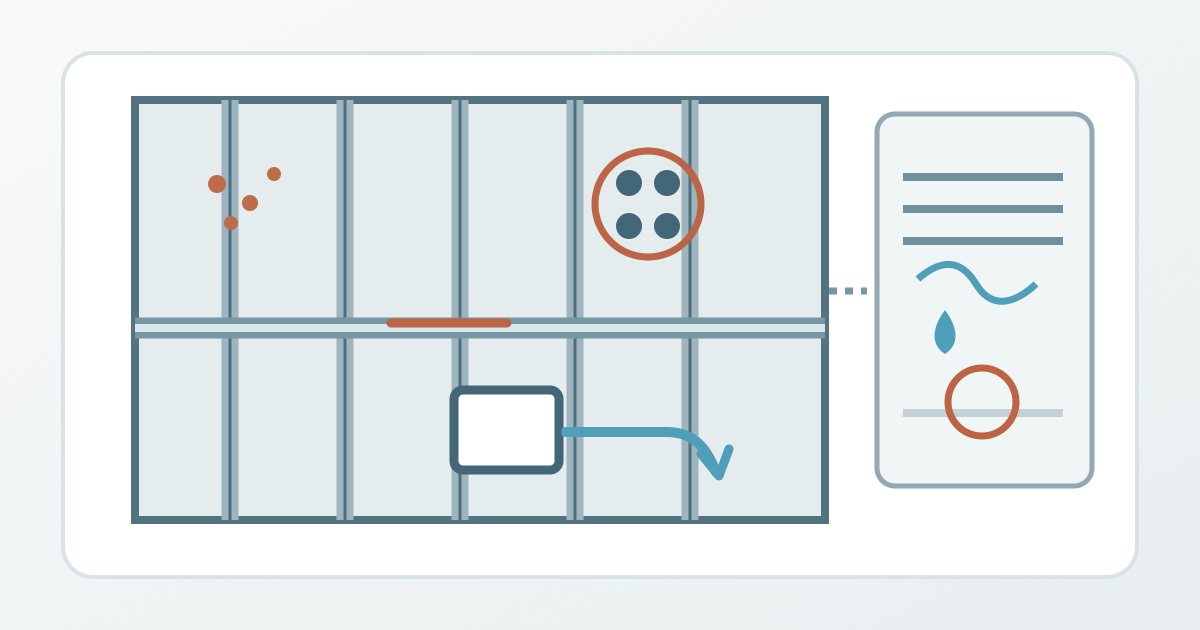

Use the pattern to choose the next check
| Observed location | Possible explanation | Next check |
|---|---|---|
| Scattered spots after nearby work | Corroding metal debris on the surface | Inspect particles and coating beneath them |
| Damage at laps or low points | Retained water or damp deposits | Trace drainage and inspect the concealed interface |
| Rust around screws | Fastener deterioration or adjacent coating damage | Check screw, washer, sheet and support together |
| Streak below a pipe or attachment | Transferred staining or incompatible runoff | Identify the upstream material and water route |
| Underside damage | Condensate, wet insulation or internal exposure | Investigate moisture sources and hidden wet layers |
Scroll within the table to see all columns →
The table organizes investigation; several causes can occur together. Compare an affected location with a nearby sound area of the same sheet system. Have the inspector establish whether the coating remains beneath a deposit and whether there is actual metal loss. Colour or a photograph alone cannot quantify remaining sheet strength. The galvanized-rust explanation provides the separate background on zinc products and substrate rust.
Trace wetting on both sides of the sheet
Follow water from the roof area above the defect through gutters, laps, flashings and penetrations. Look for blocked flow, repeated overflow and damp debris. Check concealed surfaces where a suitably planned inspection allows it. An apparently dry upper face can coexist with wet insulation or recurring underside condensation.
Ask when wetting happens: after rain, overnight, during a production process, or after a new exhaust or rooftop unit started operating. Record changes in building use. The condensation guide explains the moisture investigation; it should inform any proposed change to insulation, air control or ventilation. Adding a membrane without identifying the wetting route can leave the cause unresolved.
Avoid diagnosing every streak as galvanic corrosion. Water can transport existing rust, concentrate flow or carry incompatible contaminants. Trace its origin before selecting a treatment. Collect samples only through an appropriate inspection procedure if chemical analysis is needed.
Check fasteners, attachments and recent work
Inspect the sheet around the fixing as well as the fixing itself. Record red corrosion, damaged washers, loose attachments and deterioration of the supporting material. A replacement screw needs compatibility and connection approval for the existing assembly. The fastener guide covers the required connection information. Avoid substituting stainless steel or a larger screw solely because it looks more durable.
Review additions such as solar equipment, service pipes and walkways. Check their contact materials, drainage and access for future inspection. Ask the responsible contractor what was cut, drilled or cleaned nearby. Metal debris left by later trades can produce new staining on an older roof. These observations help distinguish a recent local event from wider deterioration; they do not establish responsibility by themselves.

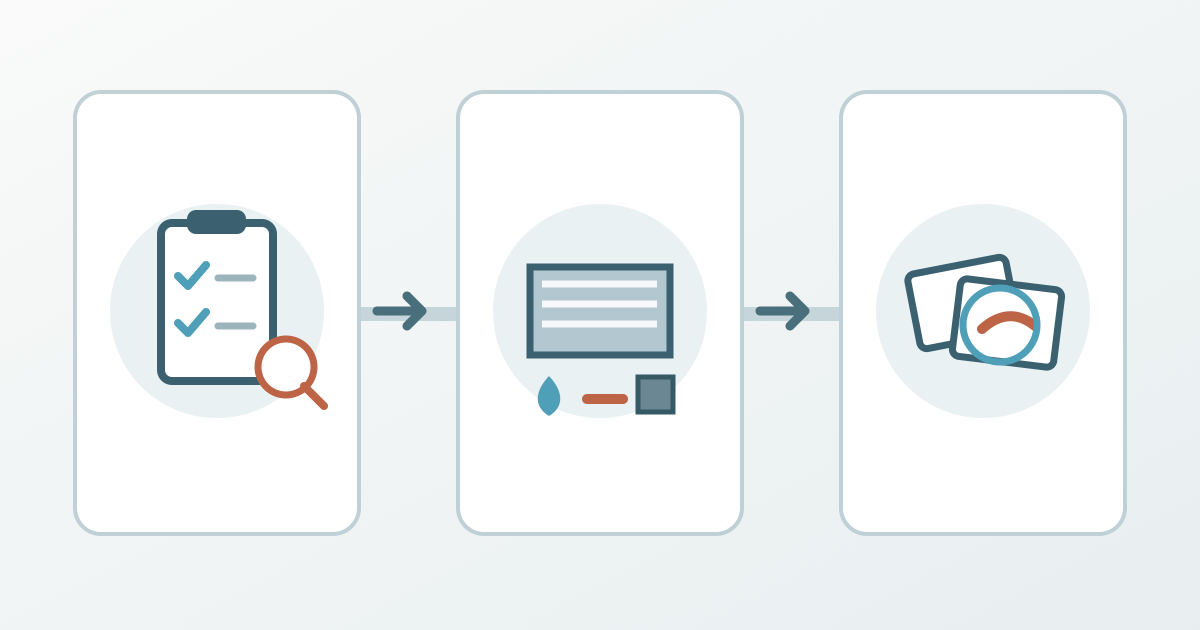

Agree the response before removing evidence
For deposits on an otherwise sound surface, obtain the sheet supplier’s cleaning method for the identified finish. Use an approved trial area to check appearance and compatibility before wider cleaning. BlueScope’s October 2026 TB-04 distinguishes its prepainted and bare products; its detergent advice must stay within that product scope. Keep cleaning runoff out of drinking-water collection and follow the applicable collection-system instructions.
Where coating damage or sheet corrosion is confirmed, ask for a written repair assessment covering the remaining material, affected extent, joints and fixings. The assessor should identify whether localized treatment, panel replacement or further structural examination is appropriate. Perforation, significant deterioration at connections, deformation or inaccessible underside damage warrant prompt specialist assessment. This guide supplies no universal rust-area or thickness-loss acceptance limit.
Painting cannot recover lost metal section. Obtain the preparation, compatible coating system, application conditions and warranty position before work starts. BlueScope TB-02 states that overpainting its covered products voids BlueScope warranties unless a future position is separately negotiated under its instructions. Other manufacturers have their own terms. A colour-matched aerosol provides no evidence that the repair is suitable.
Prevent recurrence at the source
Tie each corrective action to the observed defect. A debris-related patch needs a cleanup and future-trade control; a repeatedly wet lap needs its water-management detail reviewed. A deteriorated fixing needs the connection and surrounding sheet assessed together. For an incompatible discharge, have the relevant designer or trade resolve the source and drainage route.
Use the identified manufacturer’s maintenance schedule for the actual exposure and sheltered areas. Record who can inspect safely, which surfaces need attention and what observations trigger an earlier visit. After new rooftop work, require photographs and clearance of debris from sheets and gutters. Keep access arrangements and roof-loading limits in the work brief.
Verify the repair and retain a usable history
Before closing the job, retain the defect map, product identification, investigation findings, approved repair method and photographs of any concealed work. Record unresolved areas and who is responsible for them. Have the contractor document the completed work against the agreed scope.
Reinspect under conditions that previously produced wetting, at the interval set by the assessor or manufacturer. Compare photographs from the same locations and note renewed deposits, expanding damage or returning moisture. Escalate recurrence with the original records so the next investigation starts with evidence. The technical source notes identify the manufacturer guidance and case-study limits behind this workflow.
